BER - Electric battery
ELECTRIC BATTERY

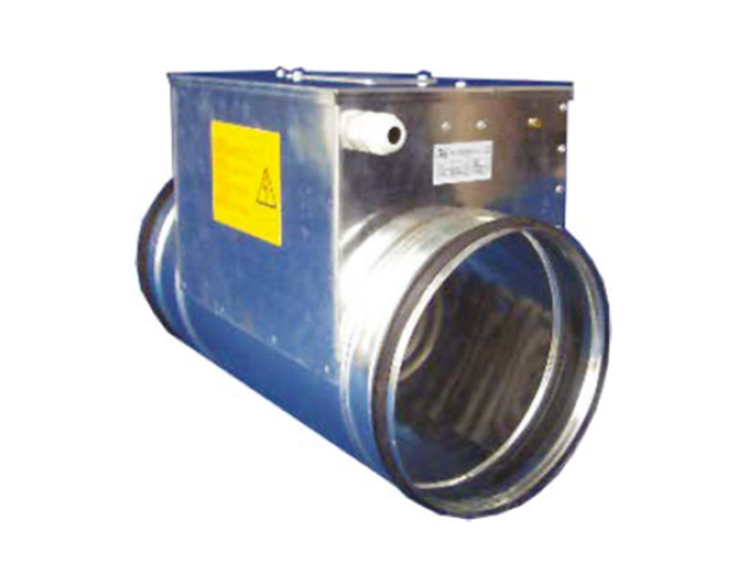

BER – Electric Heating Coil with Integrated Temperature Probe Control (For pre-heating or post-heating operation). The circular-section electric pre-/post-heating units are equipped with circular flanges for easy duct installation.
Sizes
BER 1-8 C – for URC 80 EC and URC 90 EC
BER 1-8 – for URA and URA EC INVERTER
Technical details
- Galvanized sheet steel casing
- Electrical junction box complete with cable gland and terminal block
- Circular flanges for duct connection
- Automatic reset thermal cut-out (inside electrical box)
- Manual reset thermal cut-out (inside electrical box)
- The outlet air temperature can be adjusted via an external potentiometer located on the control box.
- The electric heating coil is designed for stand-alone installation, with no communication required with the air handling unit.
