MVHR + DEHUMIDIFY

Code: URAR-DOMO

Technology: Heat recovery + dehumidification

Category: Residential system

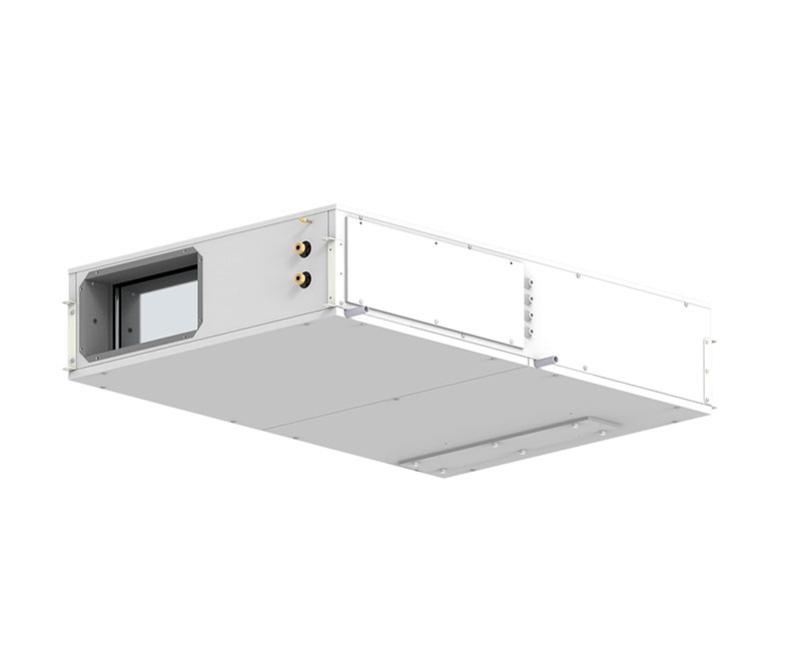

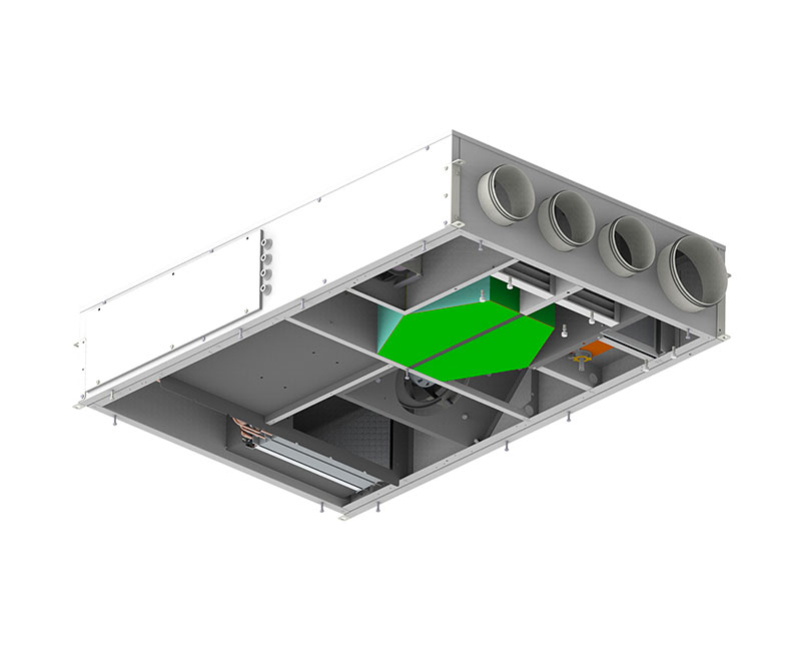

URA R DOMO is a controlled mechanical ventilation unit with high efficiency heat recovery, air treatment section with dehumidification, cooling and heating.
Efficiency up to 90%.

Sizes:
B 30/15 - range 297 m3/h< br>B 40/20 - range 391 m3/h
A 50/25 - range 520 m3/h
A 60/30 - flow rate 619 m3/h

Technical details:
MODEL D: Standard. Unit for the renewal of the ambient air with the external one through a high efficiency recuperator. Dehumidifies.
DC MODEL: With integration. Unit for the renewal of the ambient air with the external one through a high efficiency recuperator. Renewal, dehumidification and cooling.

ELECTRONIC I: CNU control panel.
ELECTRONIC E: Advanced panel, electrical panel on board the unit with microprocessor and dedicated regulation. TGF-URAR or TNF command.
Panels in double sandwich panel, externally painted, internally galvanized, insulation in polyethylene.
Two filters ePM1 80% - F7 on the external air intake and on the delivery air; Coarse filter on the recirculated air.

Request a free quote
