Hidden plenum vent PSB H150

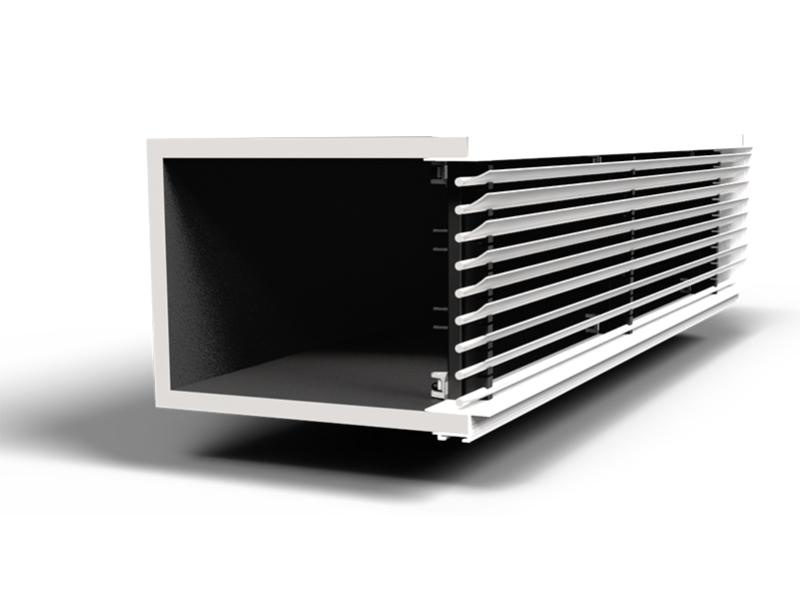

The PSB units are frameless concealed grille plenums featuring rows of white horizontal blades that can be adjusted and easily removed for internal cleaning and maintenance.
Product code type:

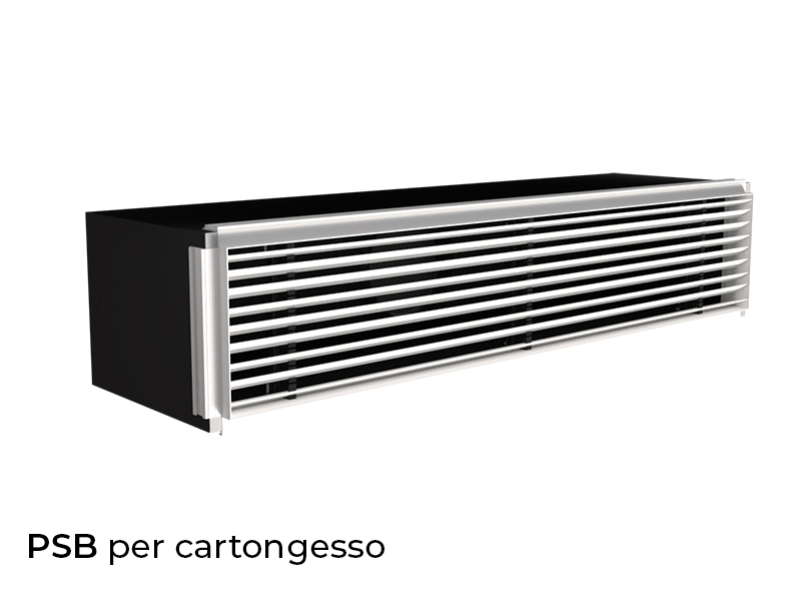

Plasterboard installation: PSB-CB-LX150-N°OUTLETS Ø-1* / PSB-XX-LX150-N°OUTLETS Ø-1*
Es. -> Grille PSB, drywall version with white profile, size 1000 × 150 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PSB-CB-1000X150-2A1B-P
* For more information on the code structure, refer to the commercial datasheet.
Fixed height 150 mm.
Length from 200 to 2000 mm (dimensions increase in 100 mm increments – single-piece product)
For lengths over 2000 mm: in drywall versions, the patented dual-inlet cap system allows modular connection of two or more grilles.
A dedicated continuity kit is also available to ensure greater structural stability.
Suitable for wall or ceiling installation, on plasterboard surfaces. For heating, air conditioning and mechanical ventilation.
- Material: Rigid polyurethane foam panel with density 49 (±2) kg/m³, laminated with black aluminum foil.
- Aluminum grille painted RAL9016.
- Adjustable aluminum fins painted RAL9016.
