Underfloor heating module

Underfloor heating module
Underfloor heating module

Underfloor heating module
  • Code:
    ACNH-SR-UNI
  • Category:
    Zoning and regulation components

Radiant floor module for managing installations with radiant floors or radiators.Self-installing, no programming required.DIN rail enclosure, 3 modules wide.Control of up to 16 zones (8+8) using the same CONTROL UNIT.

Technical characteristics:

  • Non-polarized two-wire BUS input.
  • Self-installing plug. No programming required.

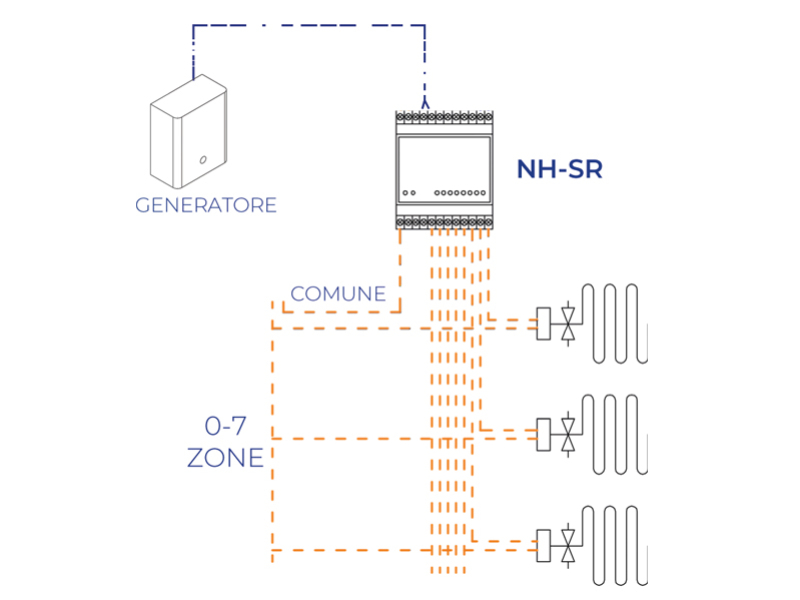

  • Isolated relay output for controlling 8 solenoid valve.
  • Selectable orientation for solenoid valves V1–V8 (8 zones).
  • Expandable to 16 zones by adding an additional module.
  • Isolated relay output for ON/OFF boiler control with N.O./N.C. contacts.
  • LED status indicators.
  • Three-module DIN rail enclosure.
  • External power supply: 230 Vac.
  • Maximum power consumption: 3.5 W.
  • Class II insulation.
  • Weight: 147 g.
