Wi-Fi wired control unit

Wired control unit prearranged for installation on DIN rail.

Code: KN-FILO-WIFI

Technology: Wired

Category: Zoning components

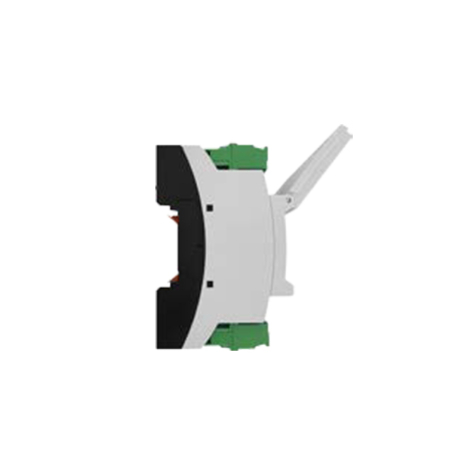

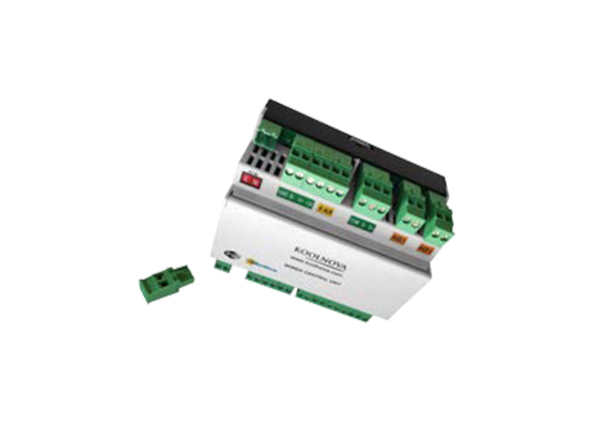

FILO control unit prearranged for installation on DIN rail.

For systems in which home automation control of the building is required, including air conditioning.

Allows remote access via internet to all elements of the system, monitoring and commanding them.

Simple installation and local control from wired thermostatic controls (up to 8 zones).

Remote control from KOOLNOVA CLIMA APP and KOOLNOVA DOMO APP available for IOS and Android systems or BMS.

Details technical:

KOOLNOVA BUS output. Two wires without polarity for connecting the different motorized elements.

Control of up to 8 air zones + 8 underfloor heating zones + 32 Zone Modules.

Simultaneous control of air and underfloor heating (automatic mode).

5 operating modes: cold, hot, SR, SR+cold, SR+hot.

Control up to 4 air machines via cable or IR gateway.

WiFi module for communication with the KOOLNOVA cloud.

WPA/WPA2 security mode and WEP/AES encryption.

RS485 communication ports.

Freeze protection function.

V.IN: 100~277 VAC 50/60 Hz.

I.IN. max: 0.45 Amps.

AC load capacity: 10A/277 VAC.

DC load capacity: 10A/30 VDC.

Class II .

Weight: 270 g.
