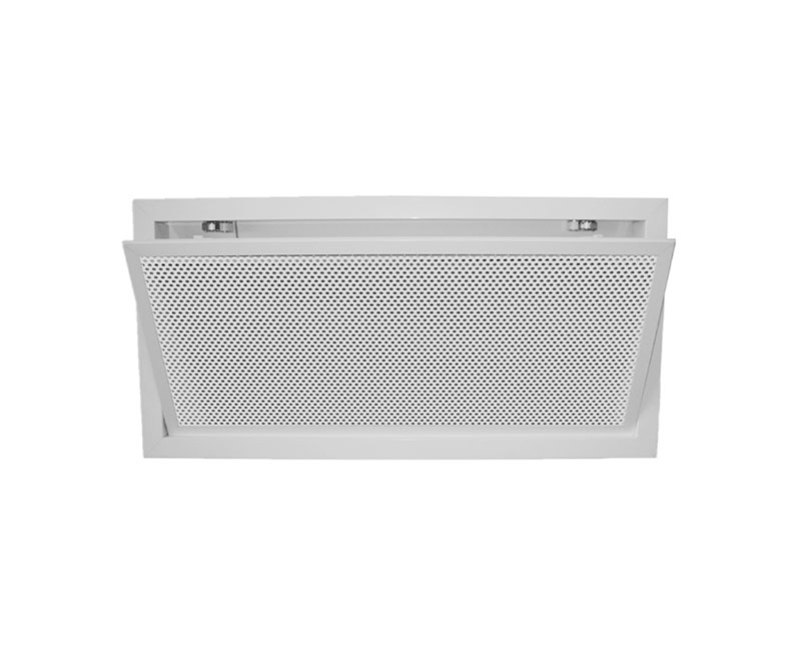

Perforated panel diffuser with frame

Perforated panel diffuser with frame
Perforated panel diffuser with frame
Perforated panel diffuser with frame

BQF-SMF
  • Code:
    BQFSMF-LXH
  • Category:
    DIFFUSERS AND STANDARD GRILLES

Perforated panel air diffuser.
Ceiling or wall installation and clip fastening.
For air recovery inside rooms.

Sizes:
Length: 200 to 1000 mm
Height: 200 to 600 mm

Technical details:
Perimeter frame material: aluminium.
Panel material: galvanized steel.
Finish: RAL9016 white paint.
The perforated mesh is made according to the following specifications:

  • round holes alternating at 60°;
  • empty/full ratio 46%;
  • diameter of the holes 5mm;
  • distance between centers 7mm.

GRILLE PLENUM: See section “Grille and Diffuser Plenums.”

Only available in the Italian Market
