Linear deflector drop diffusers
DLN in extruded anodized aluminium

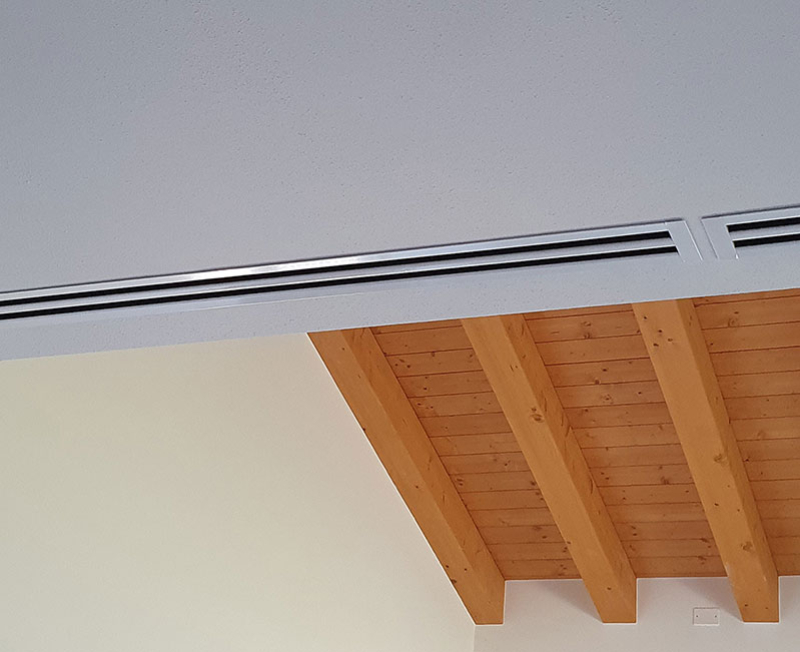

DLN are linear slot diffusers with drop deflectors.
Sizes :
From 800 to 2000 mm
DLN10: diffuser without deflectors
DLN20: diffuser with black drop deflector.
DLN30: diffuser without fins with damper.
DLN40: diffuser with black deflector drop and sliding damper.
From 800 to 2000 mm
DLN10: diffuser without deflectors
DLN20: diffuser with black drop deflector.
DLN30: diffuser without fins with damper.
DLN40: diffuser with black deflector drop and sliding damper.
Technical details:
Material: aluminum extruded anodized.
Finish: painted white RAL9016 with black deflectors.
Final code "A" aluminum with black deflectors.
Slots from 1 to 4 in the standard version.
Installation at ceiling at a height varying between 2.5 and 3.1 m.
Material: aluminum extruded anodized.
Finish: painted white RAL9016 with black deflectors.
Final code "A" aluminum with black deflectors.
Slots from 1 to 4 in the standard version.
Installation at ceiling at a height varying between 2.5 and 3.1 m.
GRILLE PLENUM: See section “Grille and Diffuser Plenums”
