Nozzle Diffusers
DU and DUC with a maximum angle of 30°
Description:

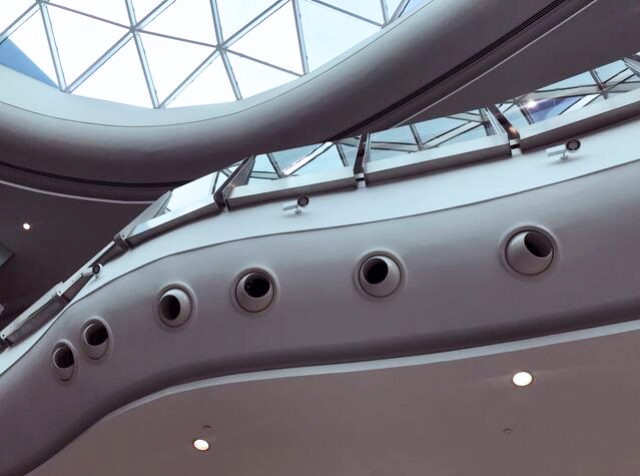

Long range nozzle diffusers adjustable with a maximum angle of 30°.
Ceiling or wall installation in delivery.
Ceiling or wall installation in delivery.
Sizes:
DU: 80 / 150 / 200
DUC: 125 / 160 / 200 / 250 / 315
DU: 80 / 150 / 200
DUC: 125 / 160 / 200 / 250 / 315
< /div>
Technical details:
DU: natural satin aluminum with transparent primer. Installation using front screws on the collar of the diffuser to the duct or to the fitting for circular duct.
DUC: aluminum alloy in white RAL9010 colour. Special sealing gasket between the spherical element and the external frame.
Installation by fixing with concealed screws on the front.
Installed at a variable height between 2.4 and 11.5 m.< /div>
DU: natural satin aluminum with transparent primer. Installation using front screws on the collar of the diffuser to the duct or to the fitting for circular duct.
DUC: aluminum alloy in white RAL9010 colour. Special sealing gasket between the spherical element and the external frame.
Installation by fixing with concealed screws on the front.
Installed at a variable height between 2.4 and 11.5 m.< /div>
Only avaiable in the Italian Market
