Code: NH-TOUCH4G-M-FI / NH-TOUCH4G-S-FI / NH-TOUCH4G-T-FI

Technology: Wire

Category: Zoning components

The wired touch controls, connected to the motorized elements of the system, work as a zone thermostat and it is therefore necessary to set one up for each room. The MASTER command, unlike the SLAVE commands, will also allow you to manage the operating mode of the system.

Technical details:
Manual/automatic fan speed selection.
Weekly timed programming, up to 4 programs per zone.
Connects directly to the BUS cable.
Possibility to select modes: COLD, HOT, FLOOR RADIANT, combined cycle.
SELF-POWERED. An external power source is not required.

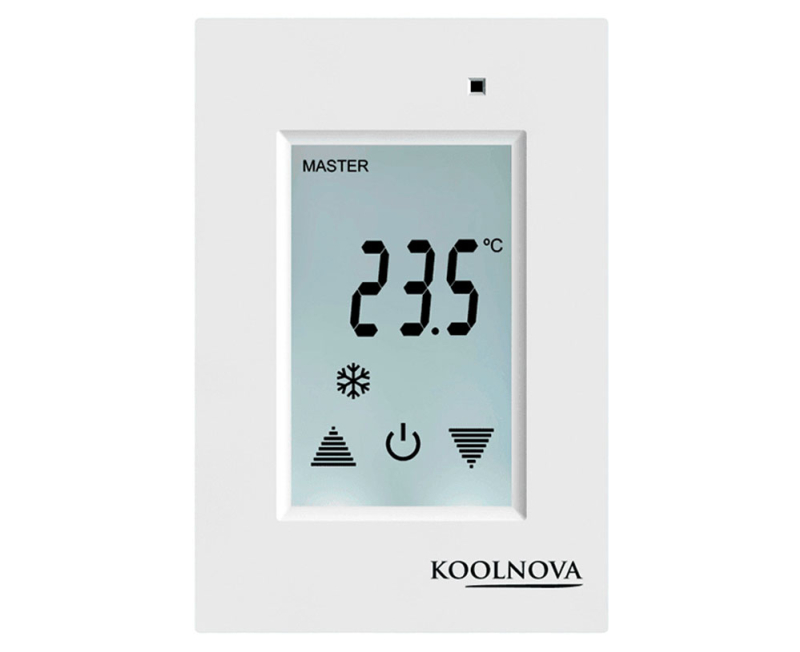

3.2" LCD screen.

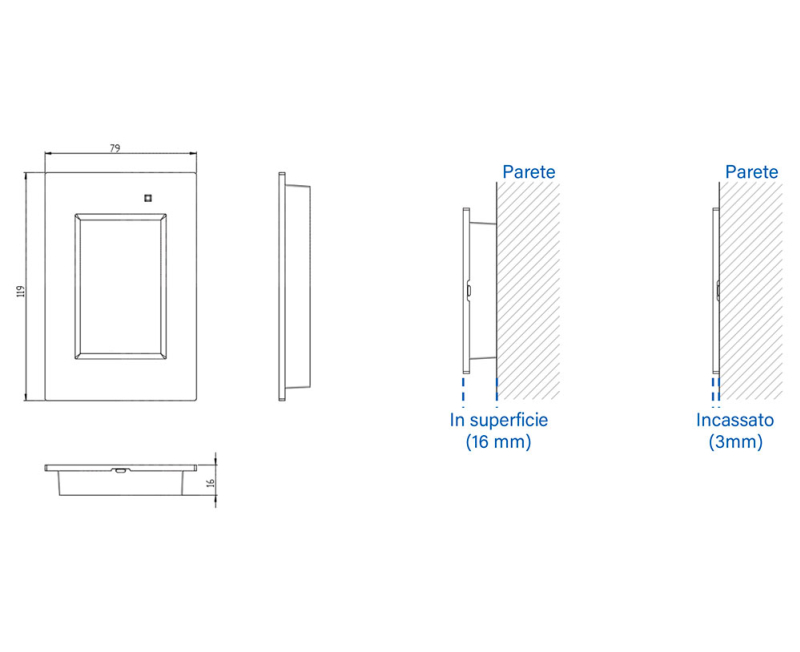

Dimensions (LxDxH): 116x16x79 mm
Weight: 100g.
