Hidden plenum four slit PS4F H 150
Available only in the Italian Market

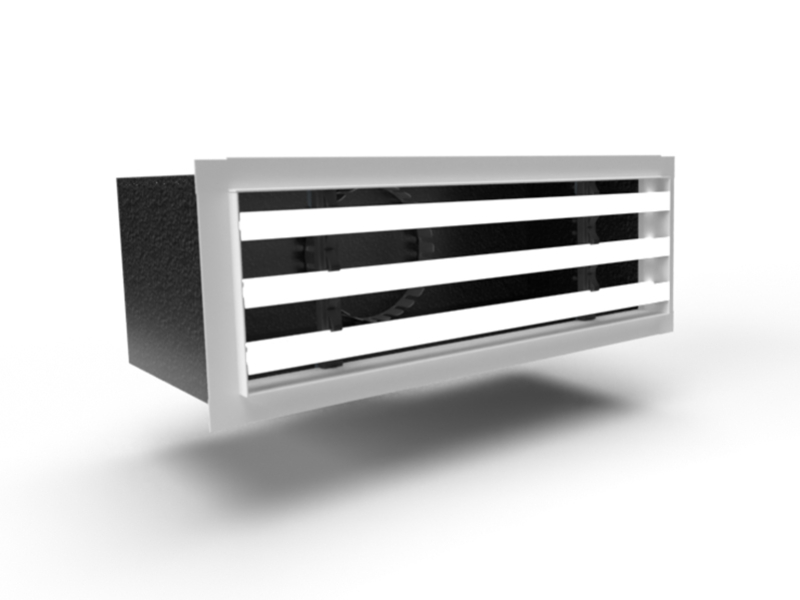

PS4F are plenums complete with retractable slot diffuser, without frame, with fins. Made with rigid polyurethane foam panel with a density of 49 (+/-2) kg/m3.
Product code type:
Plasterboard installation: PS4F-CB-LXH-N°OUTLETS Ø-1* / PS4F-XX-LXH-N°OUTLETS Ø-1*
Es. -> Grille PS4F, drywall version with white profile, size 1000 × 100 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PS4F-CB-1000X100-2A1B-P
Wall installation: on request.
* For more information on the code structure, refer to the commercial datasheet.
Check model compatibility using the Code Generator: https://aircontrolconfigurator.com/determina-codice/
Sizes:
Fixed height 150 mm.
Length from 200 to 2000 mm (dimensions increase in 100 mm increments – single-piece product)
For lengths over 2000 mm: in drywall versions, the patented dual-inlet cap system allows modular connection of two or more grilles.
A dedicated continuity kit is also available to ensure greater structural stability.
Characteristics:
Material: polyurethane and steel.
Finishing grid: painted white RAL9016.

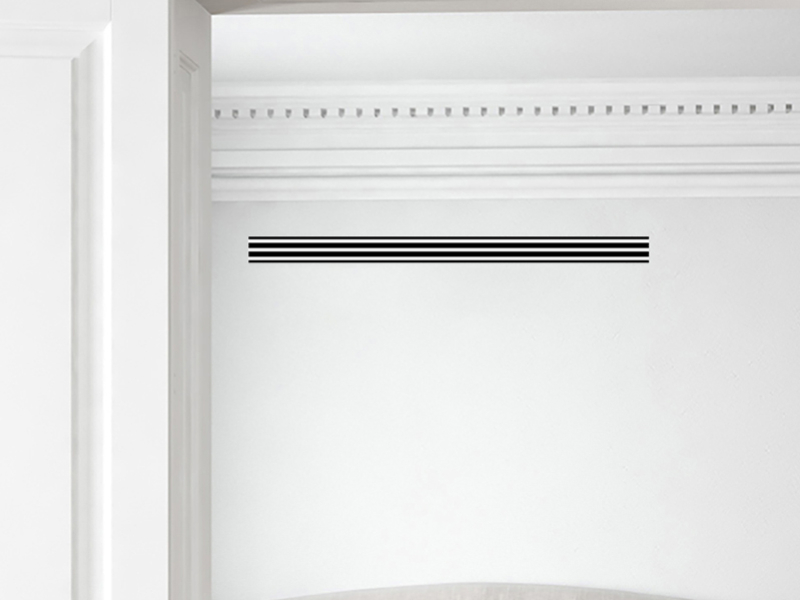

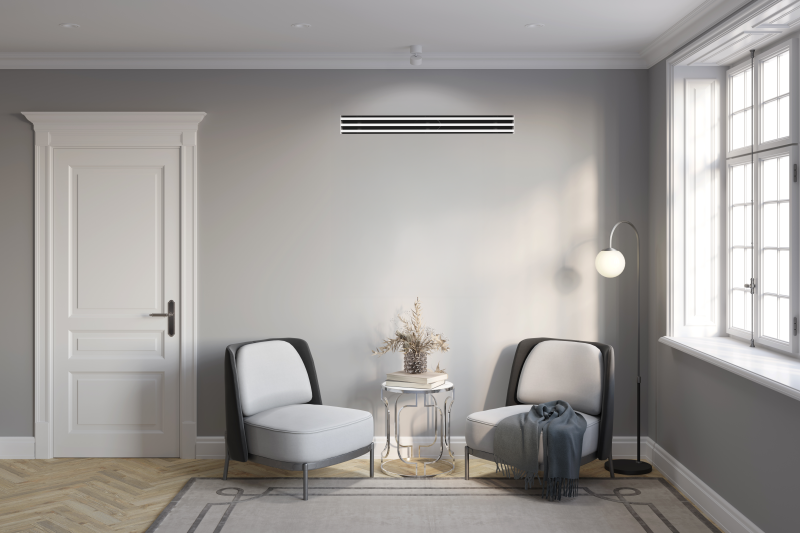

Installed on walls and ceilings and on masonry or drywall.
Dimensionals CFD Analysis
