Hidden plenum two slit PS2F H 50

PS2F - Double hidden plenum slit H 50
  • Code:
    PS2F-CB-LXH-N°ATTACCHI Ø-1 / PS2F-MB-LXH-N°ATTACCHI Ø-1 / PS2F-XX-LXH-N°ATTACCHI Ø-1
  • Category:
    HIDDEN PLENUM DIFFUSER AND VENTS

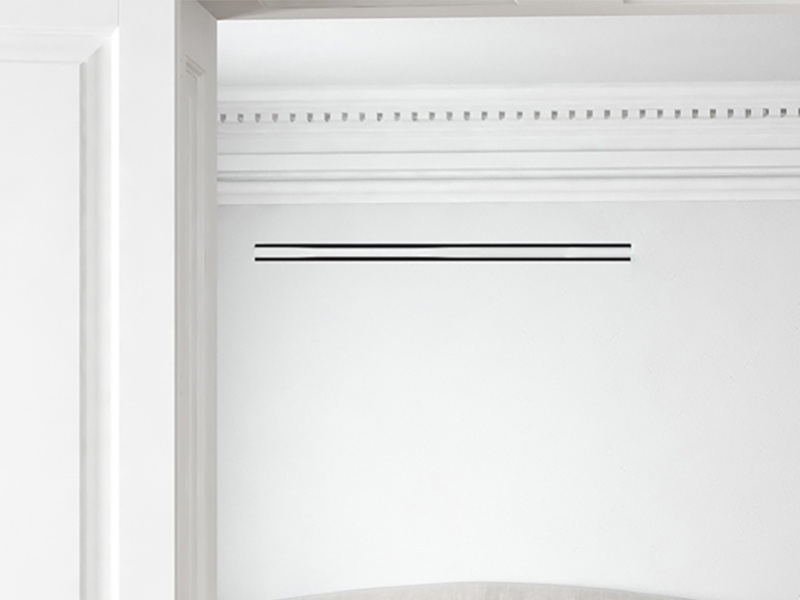

The PS2F are plenums equipped with a concealed two-slit diffuser, frameless, featuring removable black internal deflectors for easy cleaning and maintenance. Made with a rigid polyurethane foam panel with a density of 49 (+/-2) kg/m3.

Product code type:

Plasterboard installation: PS2F-CB-LXH-N°OUTLETS Ø-1* / PS2F-XX-LXH-N°OUTLETS Ø-1*

Es. -> Grille PS2F, drywall version with white profile, size 1000 × 100 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PSB-CB-1000X100-2A1B-P

Wall installation: PSB-MB-LXH-N°OUTLETS Ø-1* / PSB-XX-LXH-N°OUTLETS Ø-1*

Es. -> Grille PS2F, wall-mounted version with white profile, size 1000 × 100 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PSB-MB-1000X100-2A1B-P

* For more information on the code structure, refer to the commercial datasheet.

Check model compatibility using the Code Generator: https://aircontrolconfigurator.com/determina-codice/

Sizes:

Fixed height 50 mm.

Length from 200 to 2000 mm (dimensions increase in 100 mm increments – single-piece product)

For lengths over 2000 mm: in drywall versions, the patented dual-inlet cap system allows modular connection of two or more grilles.

A dedicated continuity kit is also available to ensure greater structural stability.

Installation:

Wall and ceiling mounted, can be installed on masonry and plasterboard. For heating, air conditioning and mechanical ventilation.

Characteristics:
  • Material: rigid polyurethane foam panel and aluminum foil, black colour.
  • RAL9016 painted aluminum grille.
  • With built-in deflector fins.
  • Side caps molded in white PC+ABS, self-extinguishing UL 94 V-0.




Documents

PDF DimensionalsPDF CFD AnalysisPDF Distribution Kit for ducted and radio motorized kits

Certifications

PDF CAM CertificationPDF Reaction to Fire Certification
