Hidden plenum slot PSF H30-H40

• Code:
  PSF-CB-LXH-N°ATTACCHI Ø-1 / PSF-MB-LXH-N°ATTACCHI Ø-1 / PSF-XX-LXH-N°ATTACCHI Ø-1
• Category:
  HIDDEN PLENUM DIFFUSER AND VENTS

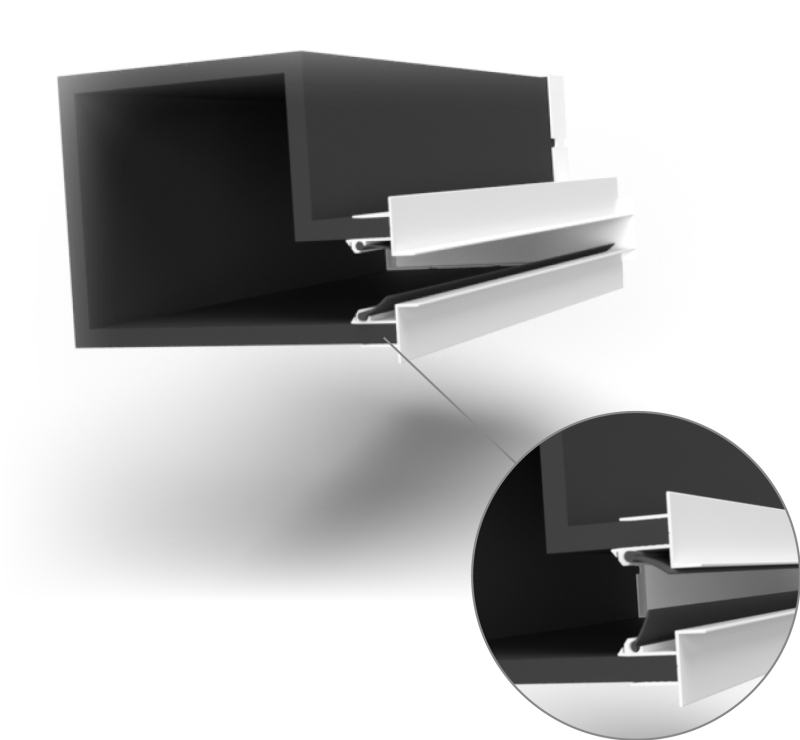

The PSF are plenums equipped with frameless concealed slot diffusers, complete with two internal black deflection blades. Made with a rigid polyurethane foam panel with a density of 49 (+/-2) kg/m3

Product code type:

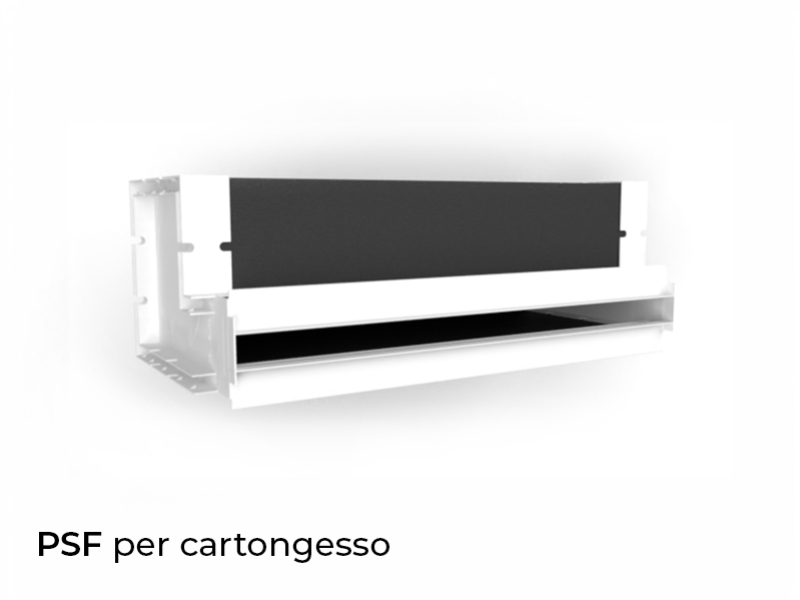

Plasterboard installation: PSF-CB-LXH-N°OUTLETS Ø-1* / PSF-XX-LXH-N°OUTLETS Ø-1*

Es. -> Grille PSF, drywall version with white profile, size 1000 × 30 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PSF-CB-1000X30-2A1B-P

Es. -> Grille PSF, drywall version with white profile, size 1000 × 40 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PSF-CB-1000X40-2A1B-P

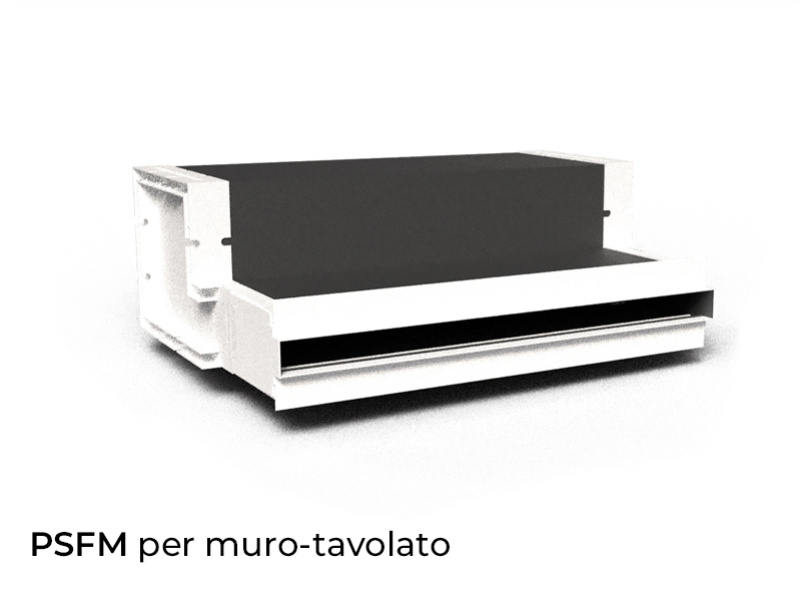

Wall installation: PSF-MB-LXH-N°OUTLETS Ø-1* / PSF-XX-LXH-N°OUTLETS Ø-1*

Es. -> Grille PSF, wall-mounted version with white profile, size 1000 × 30 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PSF-MB-1000X30-2A1B-P

Es. -> Grille PSF, wall-mounted version with white profile, size 1000 × 40 mm, two Ø150 outlets and one Ø200 outlet, rear connection configuration: PSF-MB-1000X40-2A1B-P

PSF30: Fixed height 30 mm.

PSF40: Fixed height 40 mm.

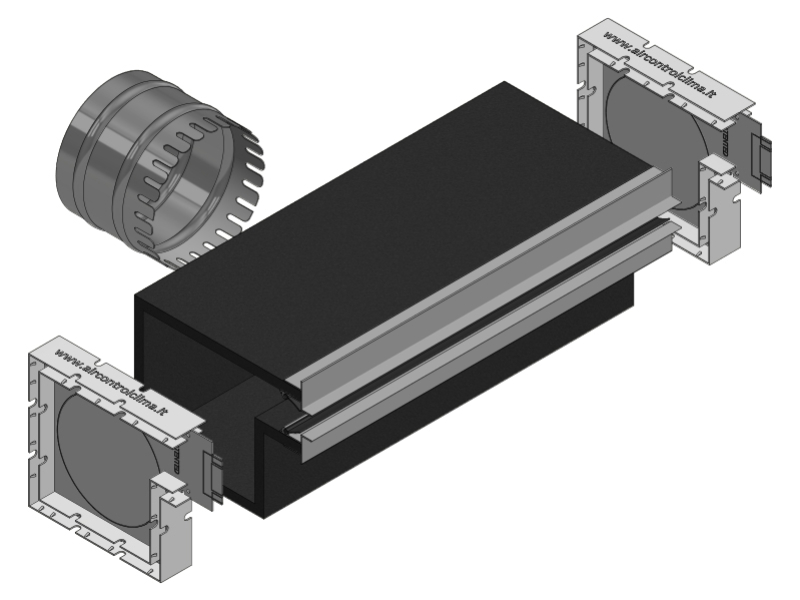

For lengths over 2000 mm: in drywall versions, the patented dual-inlet cap system allows modular connection of two or more grilles.

A dedicated continuity kit is also available to ensure greater structural stability.

Wall and ceiling mounted, can be installed on masonry and plasterboard. For heating, air conditioning and mechanical ventilation.

• Material: rigid polyurethane foam panel and aluminum foil, black colour.
• With built-in deflector fins.
• Side caps molded in white PC+ABS, self-extinguishing UL 94 V-0.

Ducted distribution kits and radio motorized kits
