  • Code:
    PLP-U-LXH-N°ATTACCHI Ø-1 / PLP-XX-LXH-N°ATTACCHI Ø-1
  • Category:
    GRILLE AND DIFFUSER PLENUM

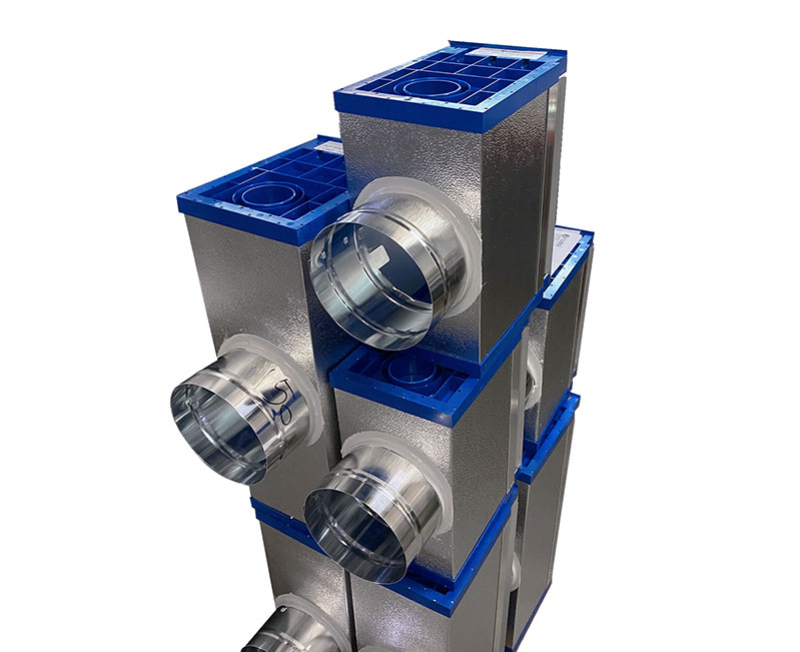

Plenum box for air grille made of rigid polyurethane foam with lateral PVC joints, complete with collar(s) for connection to flexible ducts.

Product code format:

    PLP-U-LXH-N°OUTLETS Ø-1* / PLP-XX-LXH-N°OUTLETS Ø-1*

    Es. -> Diffuser PLP, universal version, size 1000 x 100, two Ø150 rear outlets:  PLP-U-1000X100-2A-P

    * For more information on code structure, refer to the commercial datasheet

    Sizes:

    PLP100: Fixed height 100 mm.

    PLP200: Fixed height 200 mm.

    Length: 200 to 1000 mm (in 100 mm increments – single-piece product). Depth: 200 to 350 mm.

    PLP300: Fixed height 300 mm.

    PLP400: Fixed height 400 mm.

    Length: 400 to 1100 mm (in 100 mm increments – single-piece product). Depth: 200 to 350 mm.

    PLP500: Fixed height 500 mm.

    Length: 500 to 1000 mm (in 100 mm increments – single-piece product). Depth: 200 to 350 mm.

    Installation:

    Wall or ceiling installation. Suitable for heating, air conditioning, and mechanical ventilation systems.

    Features:
    • Material: rigid polyurethane foam panel with a density of 49 (±2) kg/m³ and aluminum foil, black finish.
